Arbor Coda Splitboard 18-19 - Details
- Bamboo Power Ply
- Core: Pauwlonia & Poplar
- Sintered Base
- Mixed Glassing
- Universal Splitboard Insert Packs
- Karakoram Splitboard Clips
- Reclined Parabolic Rocker
- Carbon Uprights
- Stainless Steel
- Tip & Tail Protectors
- 360 Rails
- Three Year Warranty
The Coda Split is built on a reclined version of the Rocker System technology to increase skin–to–snow contact when climbing. This design brings the versatile, surfy performance of Coda Rocker profile to riders who go deep and want extra float. New this season: Karakoram Ultraclips and a clean base without holes. Besides from an increased price, no changes so far.
Arbor Coda Split Specification:
| BOARD SIZE | 158 | 161 | 164 |
|---|---|---|---|
| Length (cm) | 158 | 161 | 164 |
| Effective Edge (cm) | 119 | 121.7 | 124.4 |
| Tip Length (cm) | 22.5 | 22.65 | 22.8 |
| Tail Length (cm) | 21.5 | 21.65 | 21.8 |
| Tip Width (cm) | 29.45 | 29.71 | 29.98 |
| Waist Width (cm) | 25.2 | 25.35 | 25.5 |
| Tail Width (cm) | 29.45 | 29.71 | 29.98 |
| Taper (cm) | 0 | 0 | 0 |
| Camber (cm) | (-)0.81/0.44 | (-)0.84/0.46 | (-)0.86/0.47 |
| Tip Sidecut (m) | 8.8 | 8.95 | 9.1 |
| Center Sidecut (m) | 7.9 | 8.05 | 8.2 |
| Tail Sidecut (m) | 8.8 | 8.95 | 9.1 |
| Ref. Point Width (in/cm) | 22/50.8 | 22/50.8 | 22/50.8 |
| Ref. Stance Setback (cm) | 0 | 0 | 0 |
| Rider Weight (lbs) | 126-206 | 132-212 | 138-218+ |
| Rider Weight (kg) | 57-93 | 60-96 | 63-99+ |
Coda in Action:
Video Presentation from Min. 1:03:
Arbor Video:
[video:https://vimeo.com/290023594]

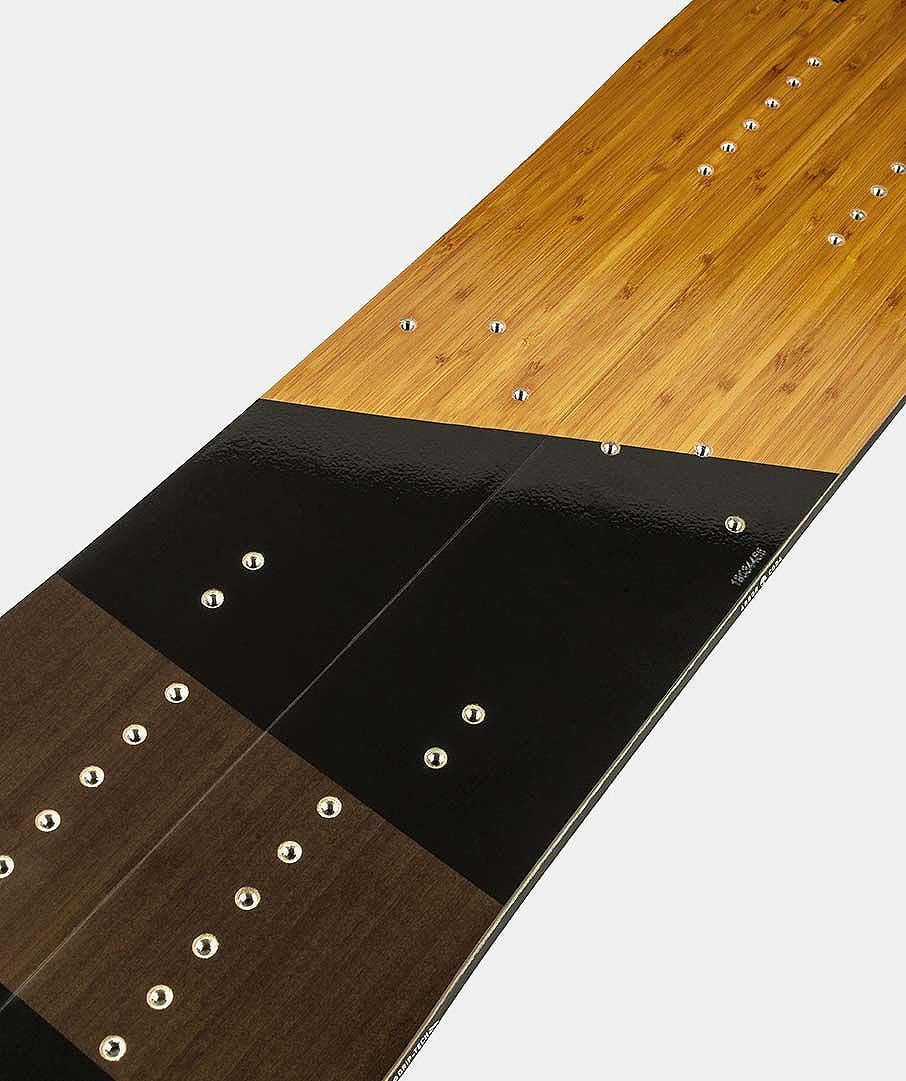

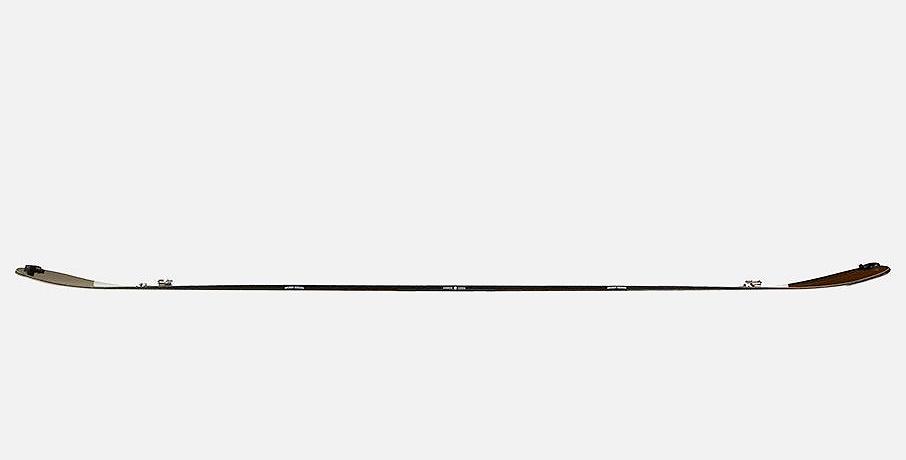

Product Images (3 Photos)
